OSSM-hardware

Mounting

Standard Actuator mounting base: PitClamp Mini

Standard PCB mount: PCB Enclosure

PitClamp Mini v1.1

| | | —- | —- |

Developed by: armpit

3d printed modular quick-release adjustable and removable mount ecosystem for 57AIM, 42AIM, iHSV57 NEMA23 motors.

• 4 degree precision quick-adjustable rotation
• Motor can be quickly removed from mount for storage or use in another base

Stress tested to 50 ft-lb without grip being compromised. (PLA 6 walls 10% infill)

Supported motors:

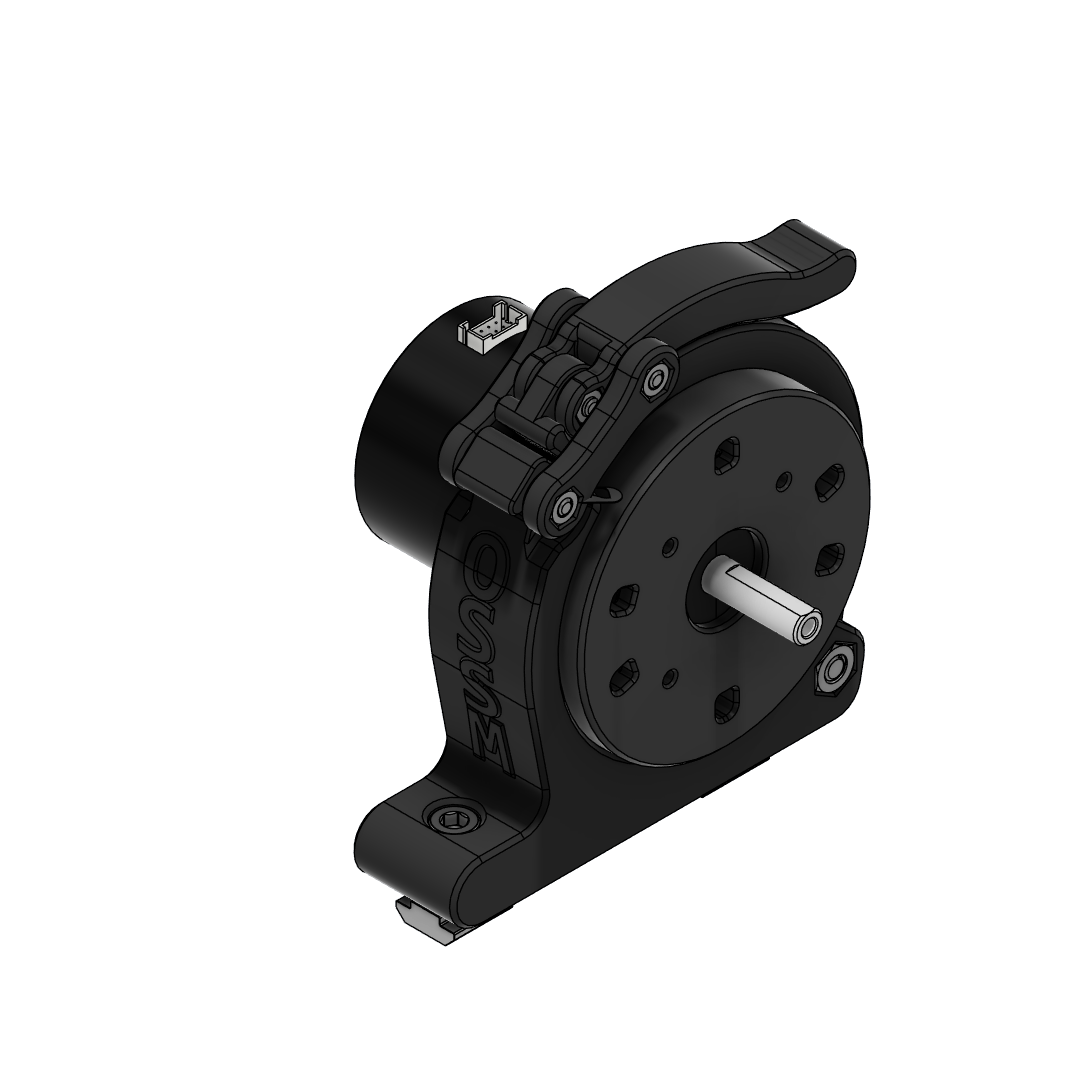

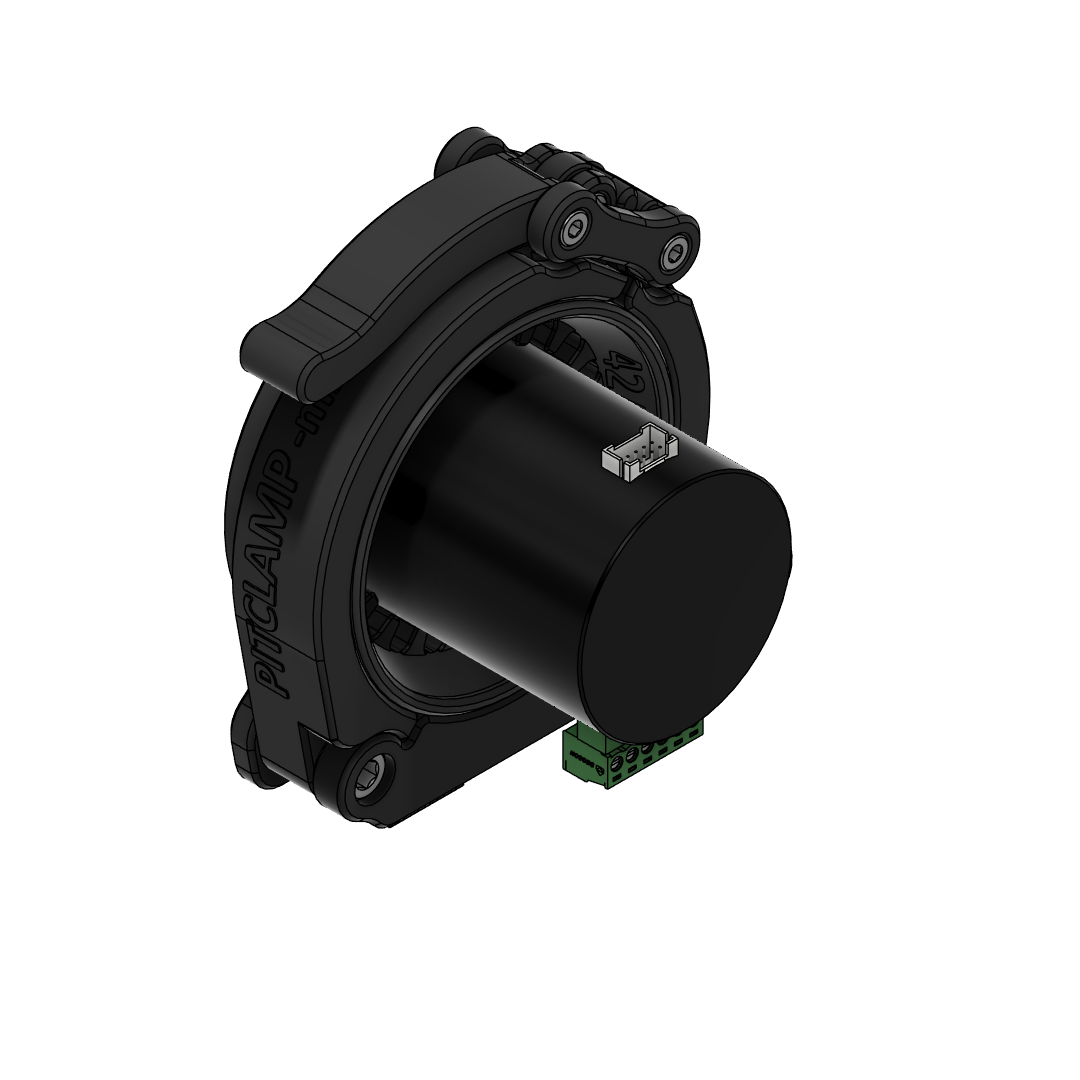

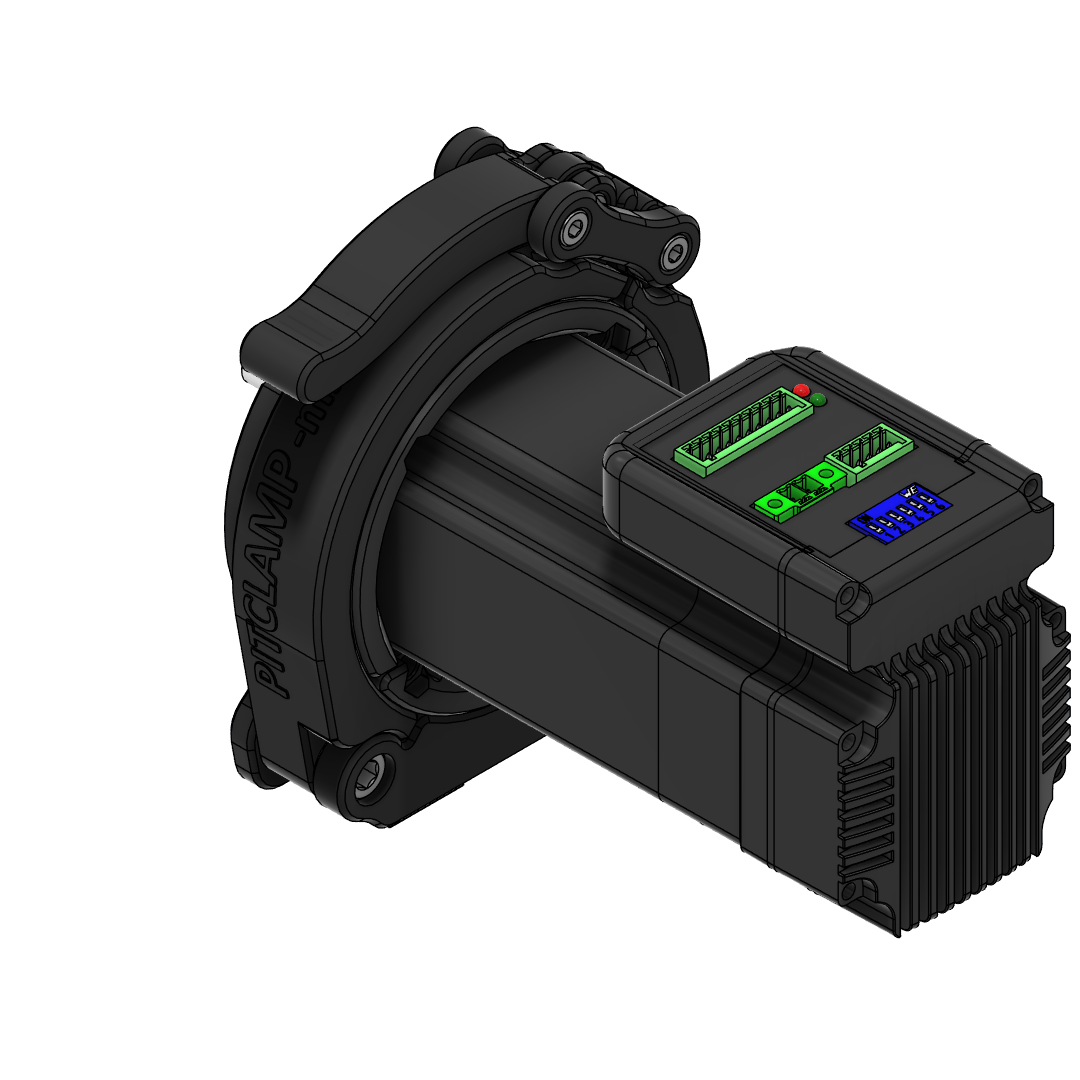

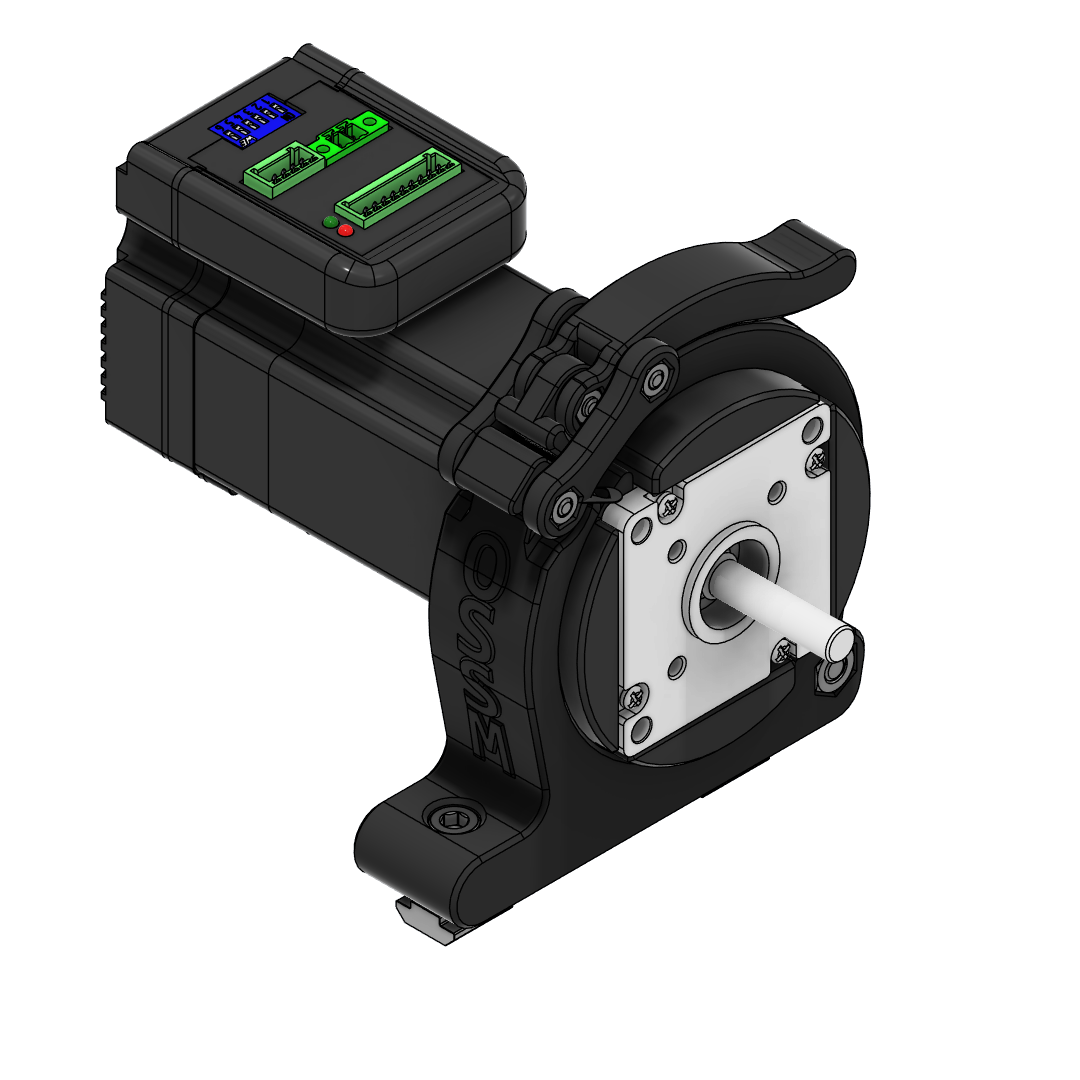

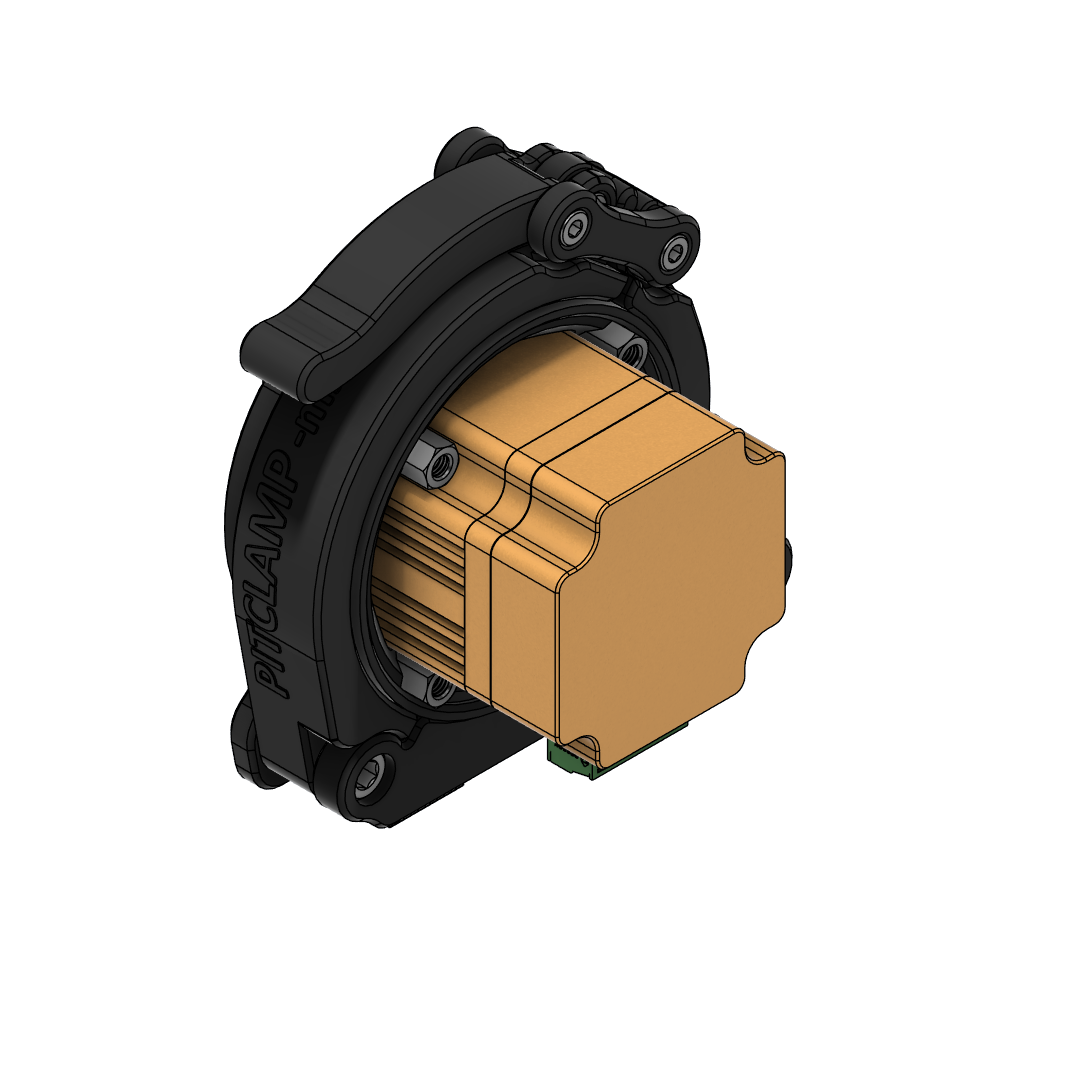

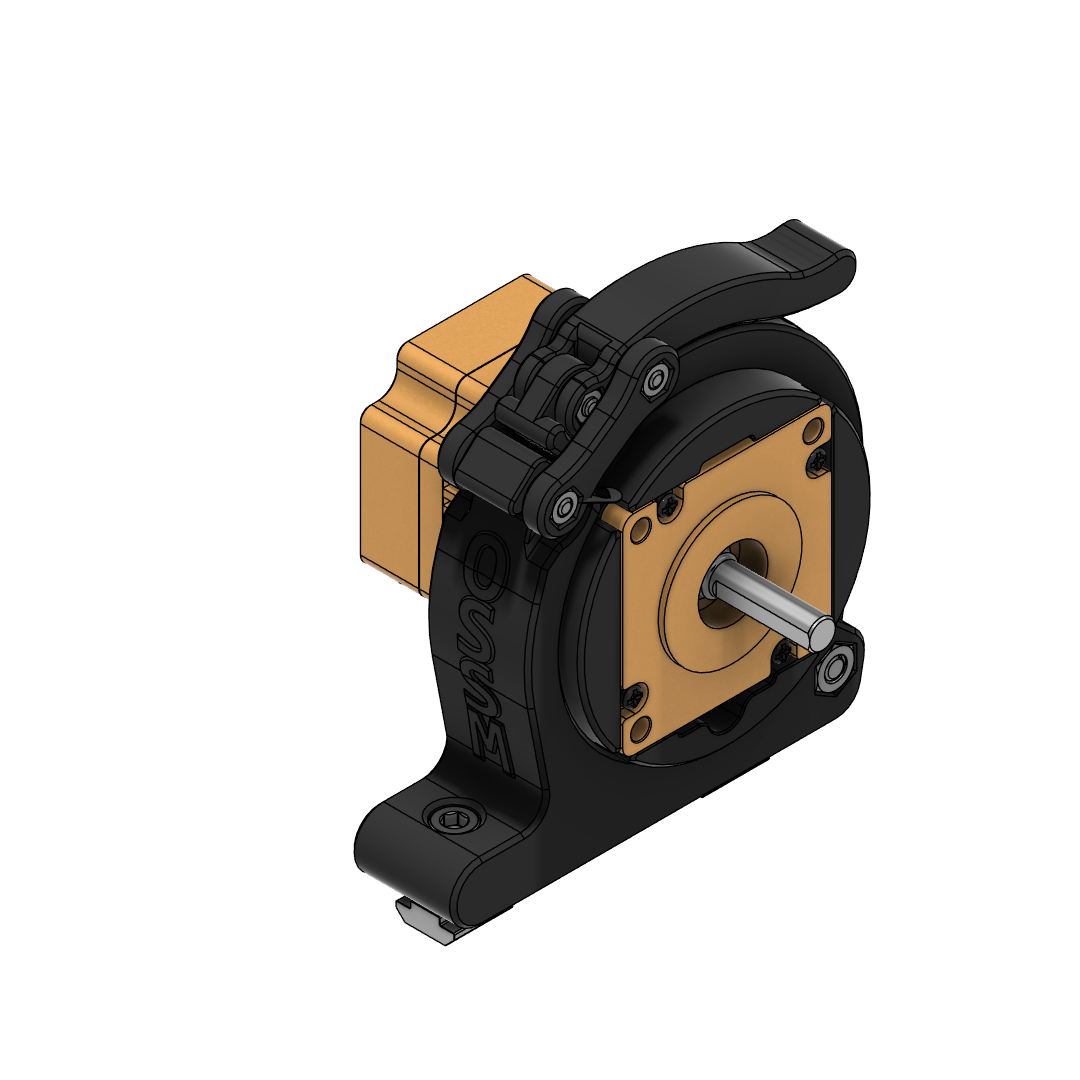

| 57AIM (30/15/10) | 47AIM (30/15/10) | iHSV57¹ (180w²) | | —- | —- | —- | | | | | | | |

¹:The iHSV57 ring is two parts but snaps into two pieces after removing from printer. Clasp each half around the motor to assemble.
²: Smaller than 180w iHSV57 will require modifications to that ring.

Printing

PitClamp Mini Standard Print Settings:

6 Walls
Infill type: Cross Hatch (or gyroid) 10%
Supports: Tree Supports with 5 degree threshold angle
Seam: Nearest (or your personal preference)  - **Filament estimate:** 150g  - **Recommended filament:** PLA+  - All parts are intended to print in the provided file default orientation.     - **Printing the Base components in other orientations will cause structural weakness**

Printed parts:

(Qty 1) Mounting Ring - PitClamp Mini - 57AIM V1.1
(Qty 1) Base - PitClamp Mini - Dogbone Bolts
(Qty 1) Base - PitClamp Mini - Dogbone Nuts
(Qty 1) Base - PitClamp Mini - Handle
(Qty 1) Base - PitClamp Mini - Lower V1.1
(Qty 1) Base - PitClamp Mini - Upper V1.1

If your printer is well calibrated and your material layer strength is optimal, the print-in-place Upper+Handle is recommended, found in the /Non-Standard folder.

Bill Of Materials

Assembly Guide Videos

Updates (Last updated - 03.06.2025)

Additional Documentation

PCB Enclosure

Printing

3030 Extrusion Mount Standard Print Settings:

4 Walls
Infill type: Cross Hatch (or gyroid) 10%
Supports: None  - **Filament estimate:** TODO  - **Recommended filament:** PLA+  - All parts are intended to print in the provided file default orientation.

Printed parts:

(Qty 1) PCB - Box
(Qty 1) PCB - Lid

Bill Of Materials

(Qty 6) M3x8 Socket Cap Head Bolt (Longer okay)
(Qty 2) M6x12 Socket Cap Head Bolt // Needs confirmation
(Qty 2) M6 T-nuts
